型号: PV005
产品应用：
额定电压: 1000V
额定电流: 30A
防护等级: IP67
工作温度: -40℃～85℃
连接器接触电阻：＜0.35mΩ
Item No. | Product Name | Model | Rated V/A | Ø range of | Conductor cross | Terminal | Ø range of |
1000V-PV005 | PV Connector | PV005 | 1000V/30A | 4.0-7.5mm | 1.5-6mm2 | A | Φ7.5 |
1000V-PV005-H25 | PV Connector | PV005H25 | 1000V/30A | 4.0-7.5mm | 2.5mm2 | B 25 | Φ7.5 |
1000V-PV005-H40 | PV Connector | PV005H40 | 1000V/30A | 4.0-7.5mm | 4.0mm2 | B 40 | Φ7.5 |
1000V-PV005-H60 | PV Connector | PV005H60 | 1000V/30A | 4.0-7.5mm | 6.0mm2 | B 60 | Φ7.5 |

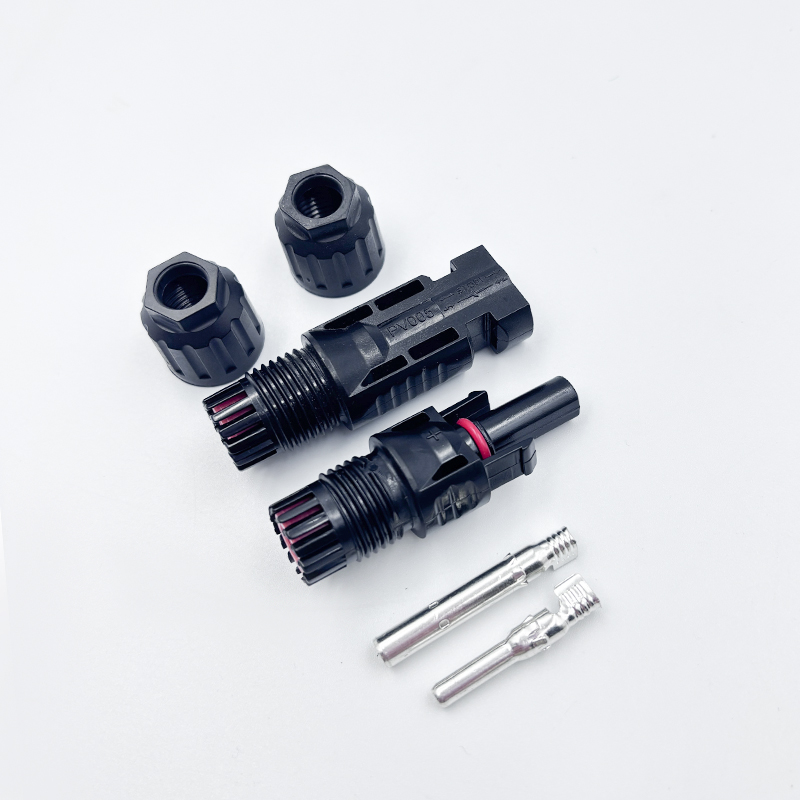

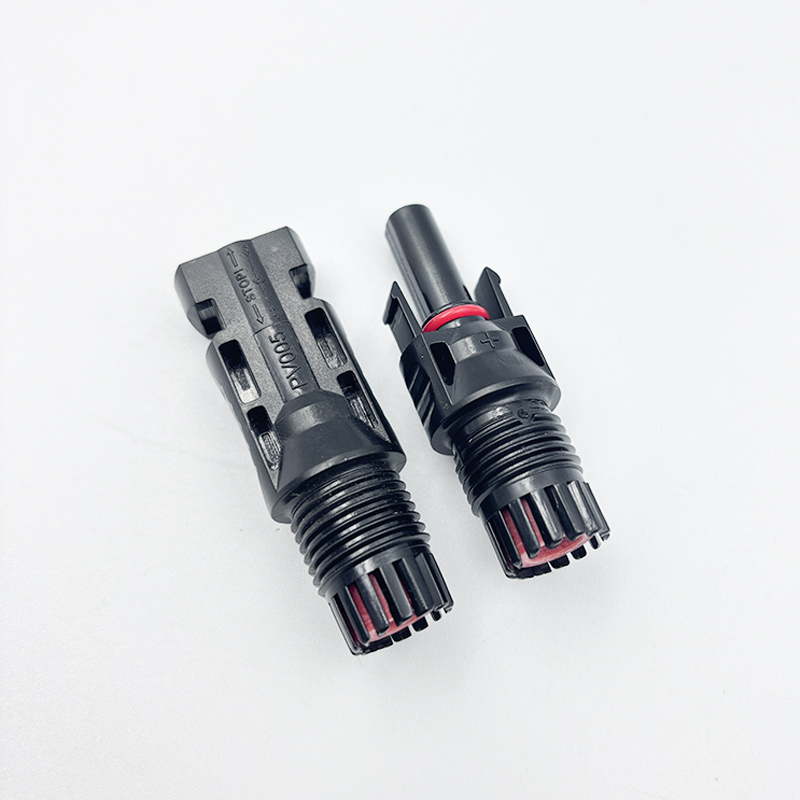

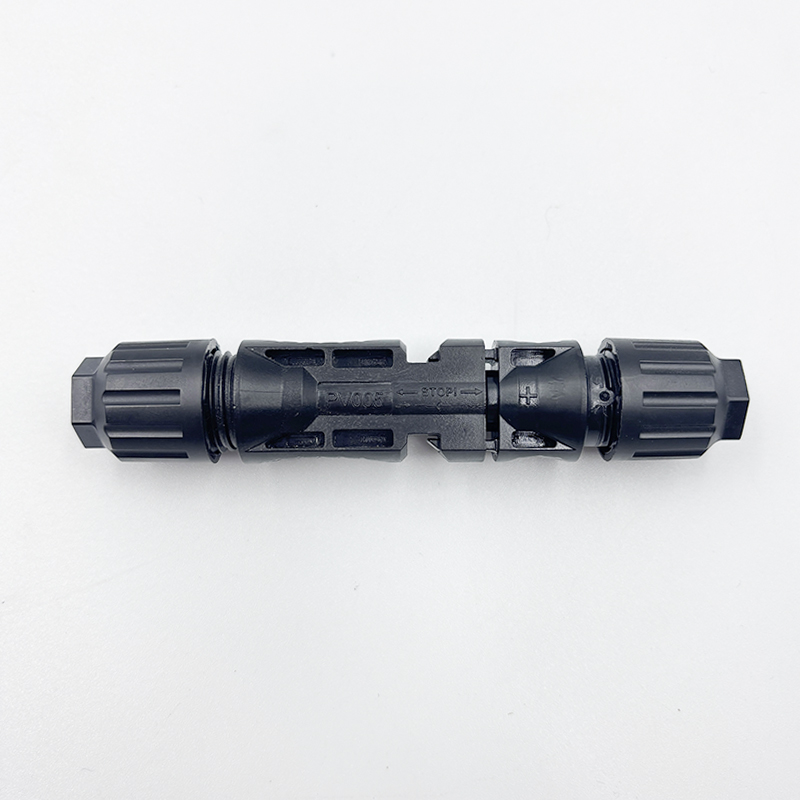

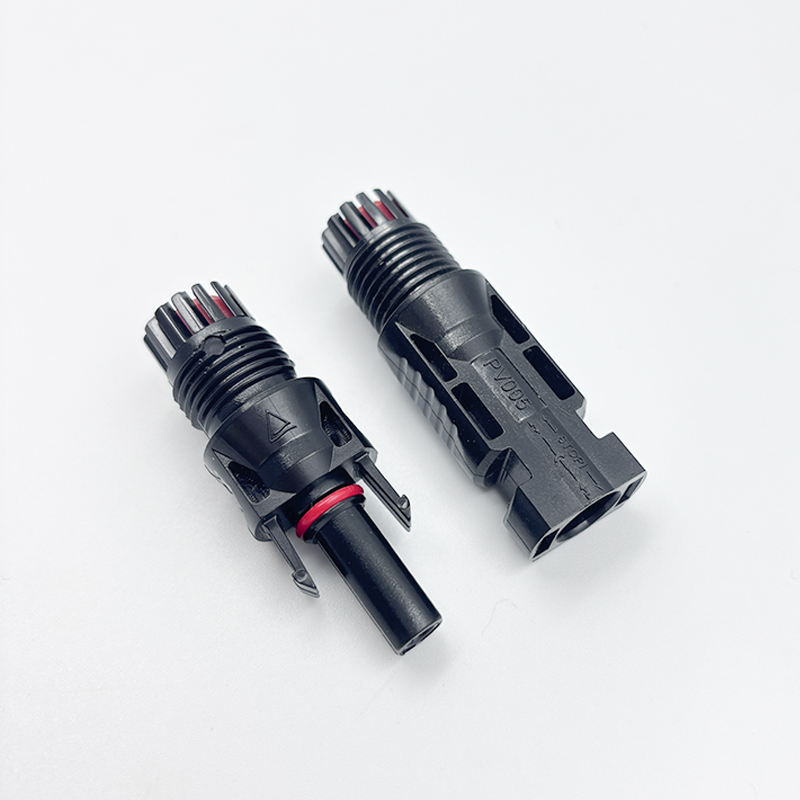

PVENER series PV Connector
Snap-in lock
Proven PVENER technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector.
Tried and tested plug connectors, over 10 years of experience in the field.
Available for assembly with cross-sections of 10 mm² （PV008）.
Mating compatibility with MC4 connector family.
Leads made to customer’s specifications, see Extension Cable.
