电动汽车充电插头 AC TYPE1-TYPE2-1P

Item NO.:AC TYPE1-TYPE2-1P

Min.Order Quantity: to be discussed
Port:Ningbo/Shanghai
Payment Terms:TT/LC/DP/DA/Paypal/Visa

在线询价

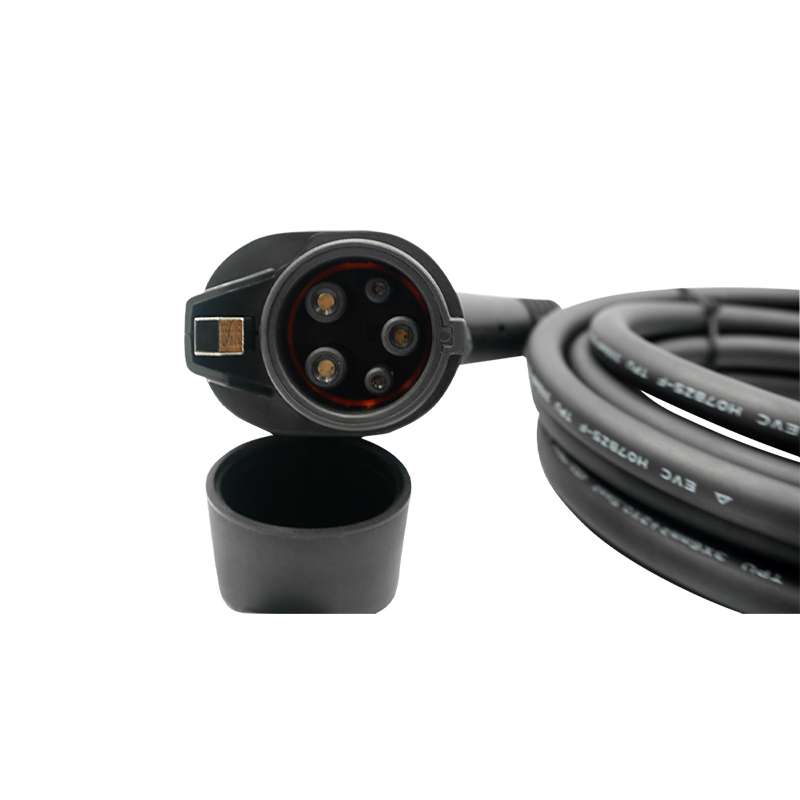

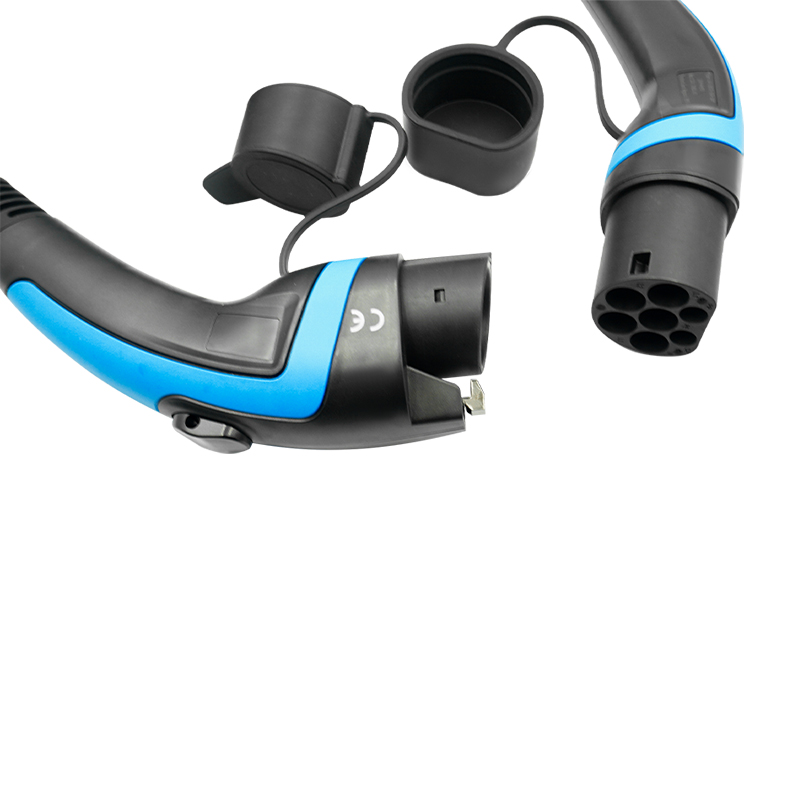

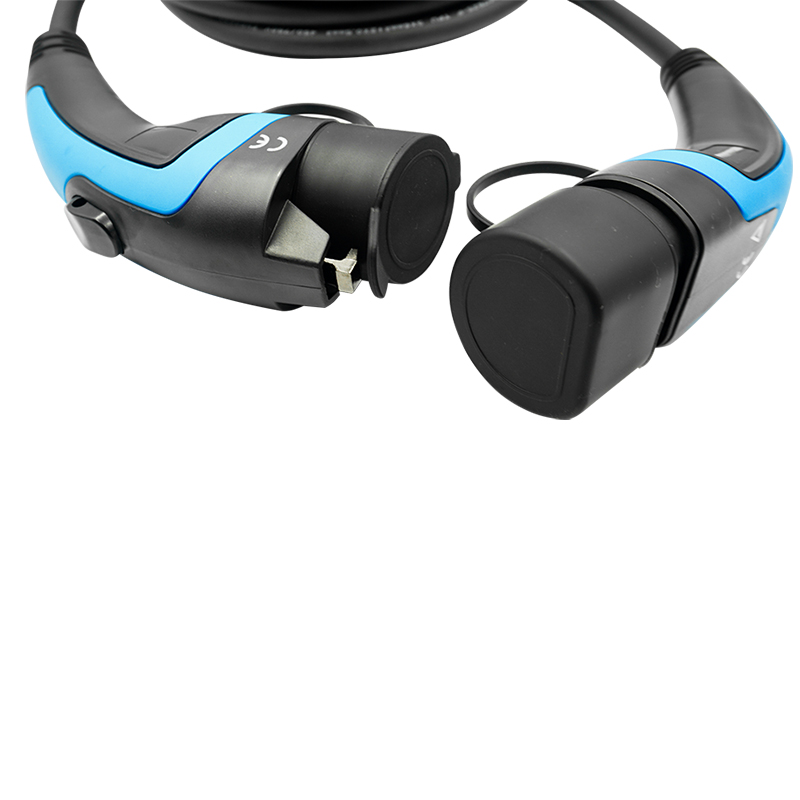

EV Charging Plug for AC (USA-EUR)

型号: TYPE1-TYPE2-P / SO-SAE-J1772-IEC2-IIb-P

额定电压: 250Vac

额定电流: 32A

防护等级: IP55

Coupler:1P+N+PE+PP+CP

Charging Cable: H07BZ5-F 3*6 mm²+2*0.5 mm²

Length: 5 Meters

Type I is designed according to the standard of SAEJ1772, the static resistance is 150ohm, and the resistance will increase to 480ohm when pressing the button.

Type II is designed according to the standard of IEC 62196-1/2 sheet 2-IIb. The static resistance is 220ohm.

生产场景: 小微电气湖州及宁波工厂建筑面积为50616平方米，电缆生产间约8000平方米，注塑生产及加工车间约为3000平方米，11条电缆挤出生产线可满足日生产30万米以上标准光伏电缆的生产能力。连接器产品可以满足日供应20000套以上的生产能力。

荣誉证书: 我们的产品严格按照国家和国际标准生产，出厂前我们对每件产品都进行了测试。我们有TUV，UL和CE认证和各种测试报告，如果你想请向我们索取！
