光伏发电系统用无卤交联聚烯烃双层光伏电缆。该电缆为最新IEC62930 标准，其额定电压为1500 V DC。
Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems. This cable can match with most PV-components like PV-junction boxes and PV-connectors, which have a rated voltage of 1500 V DC.

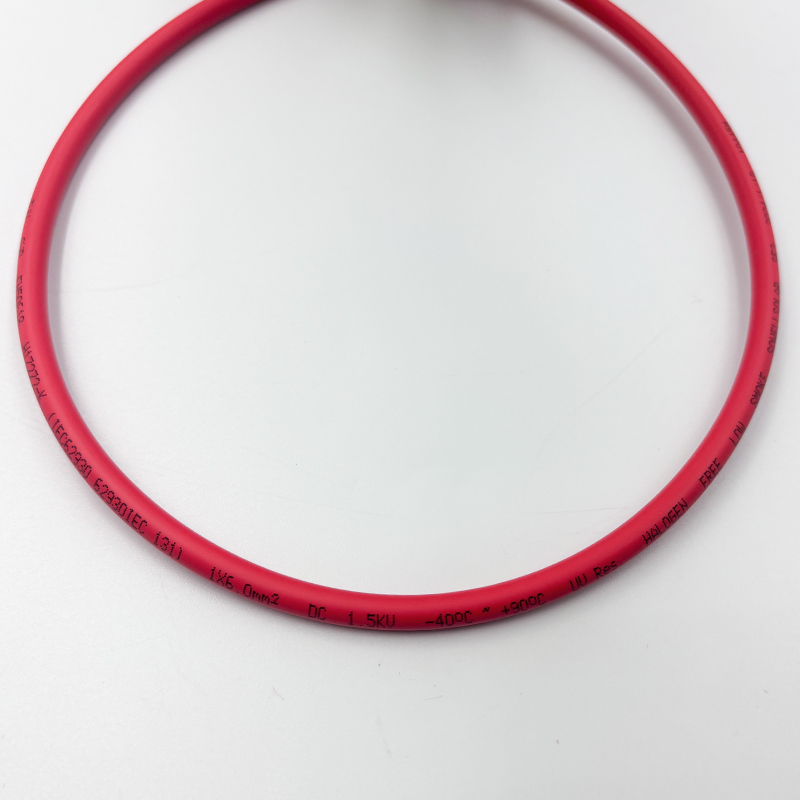

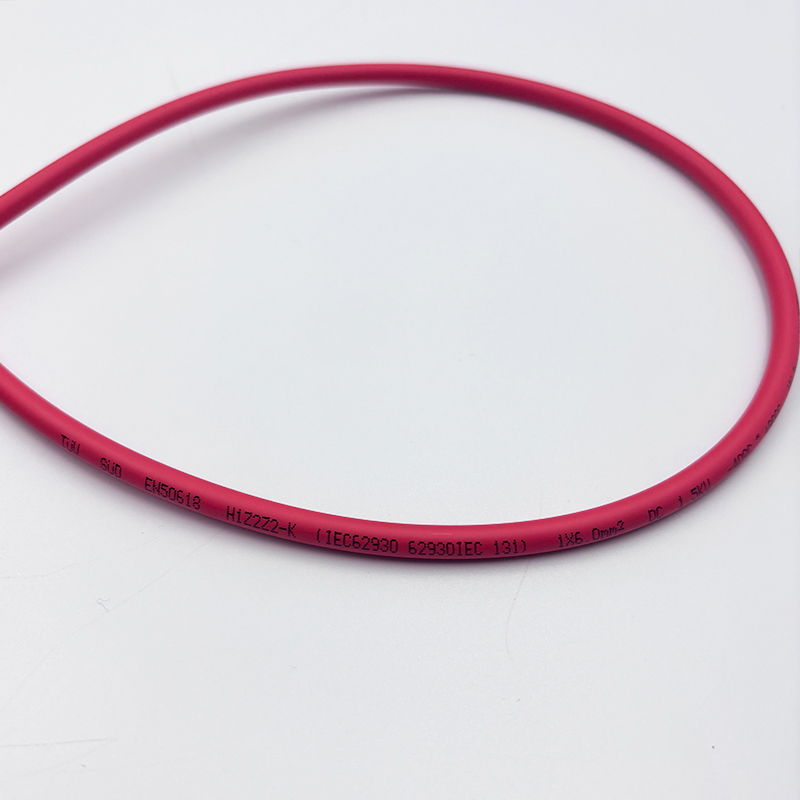

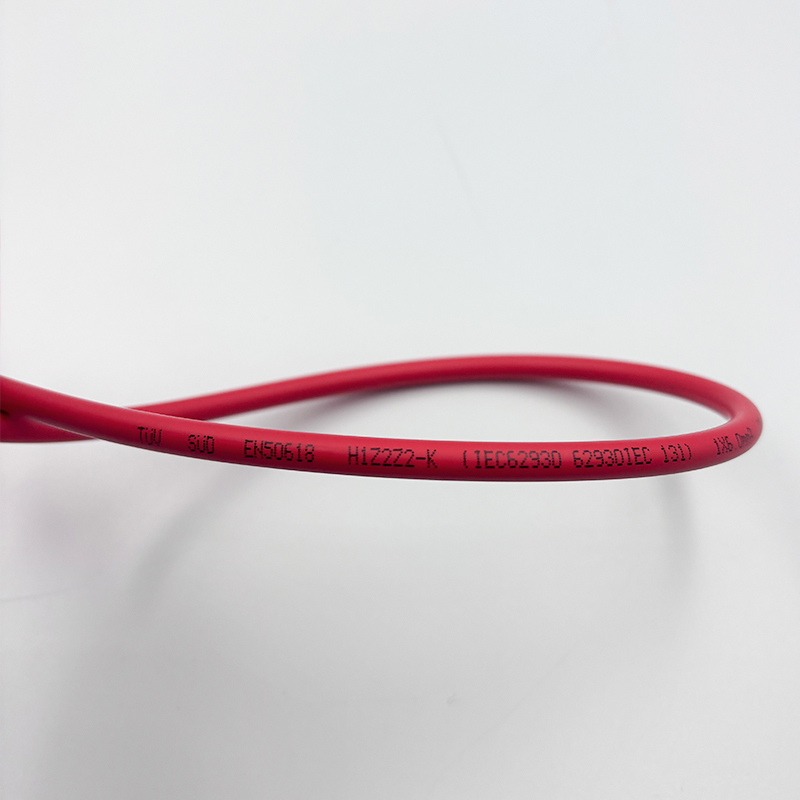

Cable surface marking
62930 IEC 131 1X ** mm2 1500VDC HALOGEN FREE LOW SMOKE TYKJ
IEC62930:2017 by TUV
4平方 100米/卷，112卷/托；500米/盘，18盘/托，1000米/盘，10盘/托。 其它规格根据客户要求订制。
Packaging: 4mm PV cable, 100 meters/roll, 112 rolls per pallet; 500 meters/roll, 18 rolls per pallet. 20 pallets in one 20FT container. Other type can be customized
| Item No. | Product Name | Model | Rated Voltage | Conductor cross section mm 2 | Strand design Number x Ø mm | Conductor resistance Ω / km 20°C | Outer-Ømm | Sheath Color |
|---|---|---|---|---|---|---|---|---|
| PV-131-15B | PV Cable | 131 | 1500VDC | 1X1.5 | 30/0.25 | 13.70 | 4.7±0.1mm | Black |
| PV-131-15R | PV Cable | 131 | 1500VDC | 1X1.5 | 30/0.25 | 13.70 | 4.7±0.1mm | Red |
| PV-131-25B | PV Cable | 131 | 1500VDC | 1X2.5 | 49/0.25 | 8.21 | 5.3±0.1mm | Black |
| PV-131-25R | PV Cable | 131 | 1500VDC | 1X2.5 | 49/0.25 | 8.21 | 5.3±0.1mm | Red |
| PV-131-40B | PV Cable | 131 | 1500VDC | 1X4.0 | 56/0.285 | 5.09 | 5.6±0.1mm | Black |
| PV-131-40R | PV Cable | 131 | 1500VDC | 1X4.0 | 56/0.285 | 5.09 | 5.6±0.1mm | Red |
| PV-131-60B | PV Cable | 131 | 1500VDC | 1X6,0 | 84/0.285 | 3.39 | 6.1±0.1mm | Black |
| PV-131-60R | PV Cable | 131 | 1500VDC | 1X6.0 | 84/0.285 | 3.39 | 6.1±0.1mm | Red |
| PV-131-100B | PV Cable | 131 | 1500VDC | 1X10 | 77/0.4 | 1.95 | 7.3±0.1mm | Black |
| PV-131-100R | PV Cable | 131 | 1500VDC | 1X10 | 77/0.4 | 1.95 | 7.3±0.1mm | Red |
| PV-131-160B | PV Cable | 131 | 1500VDC | 1X16 | 126/0.4 | 1.24 | 9.3±0.1mm | Black |
| PV-131-160R | PV Cable | 131 | 1500VDC | 1X16 | 126/0.4 | 1.24 | 9.3±0.1mm | Red |
| PV-131-250B | PV Cable | 131 | 1500VDC | 1X25 | 196/0.4 | 0.795 | 11.2±0.1mm | Black |
| PV-131-250R | PV Cable | 131 | 1500VDC | 1X25 | 196/0.4 | 0.795 | 11.2±0.1mm | Red |
| PV-131-350B | PV Cable | 131 | 1500VDC | 1X35 | 273/0.4 | 0.565 | 12.6±0.1mm | Black |
| PV-131-350R | PV Cable | 131 | 1500VDC | 1X35 | 273/0.5 | 0.565 | 12.6±0.1mm | Red |
| Cable design | |
|---|---|

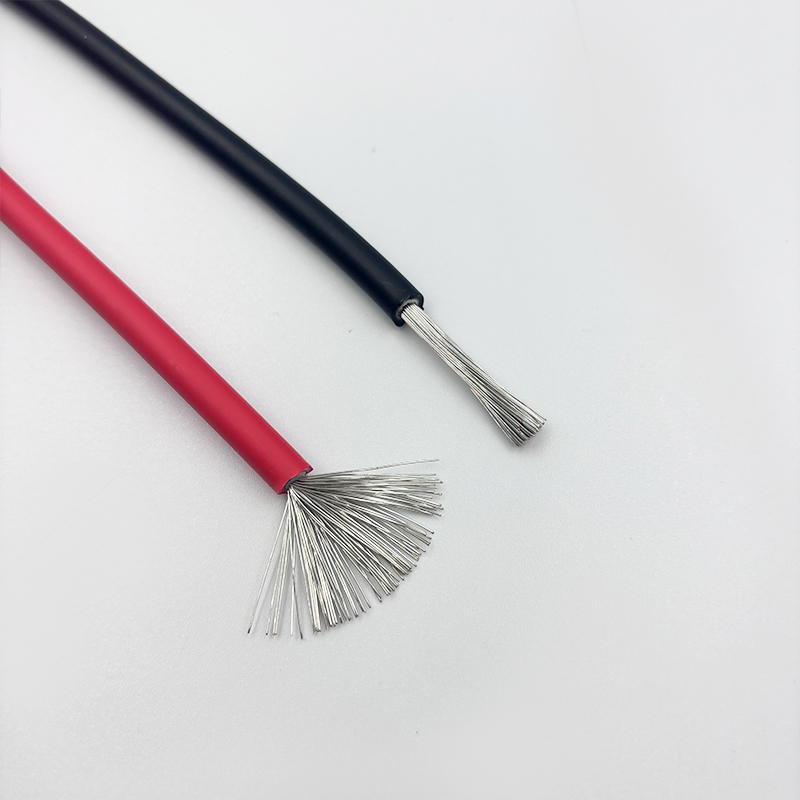

| Conductor | Tinned copper wires, according IEC 60228, Class 5 |
| Insulation | 125 ℃ Low-Smoke Halogen-Free Flame Retardant Polyolefins |
| Outer jacket | 125℃ Low-Smoke Halogen-Free Flame Retardant Polyolefins |
| Special technology | Electron beam cross-linked |
| Electrical characteristics | |
| Rated voltage U0/U | DC 1500V |
| Temperature range | -40℃ up to +90℃ |
| Max. temperature at conductor | 120℃ |
| Min. bending radius | 5 x cable diameter |
| Industry Standards | IEC62930: 2017 |
| Measurement of the resistance of conductor | IEC 60228:2004 |
| Measurement of the insulation resistance | IEC 60227-2:1997 |
| Volatage test on completed cable with DC or AC | IEC60245-2:1994 |
| Long term resistance of insulation to DC | IEC62821-2:2015 |
| Ozone resistance | IEC60881-506 |
| Weathering/UV resistance | IEC62930:-Annex E |
| Test for vertical flame propagation on complete cable | IEC60332-1-2 |
| Dimensions and specifications may be changed without prior notice. | |
