型号: SSPV-002
额定电压: 1500V
额定电流: 30A
防护等级: IP68
工作温度: -40℃～85℃
连接器接触电阻：＜0.35mΩ

  General：

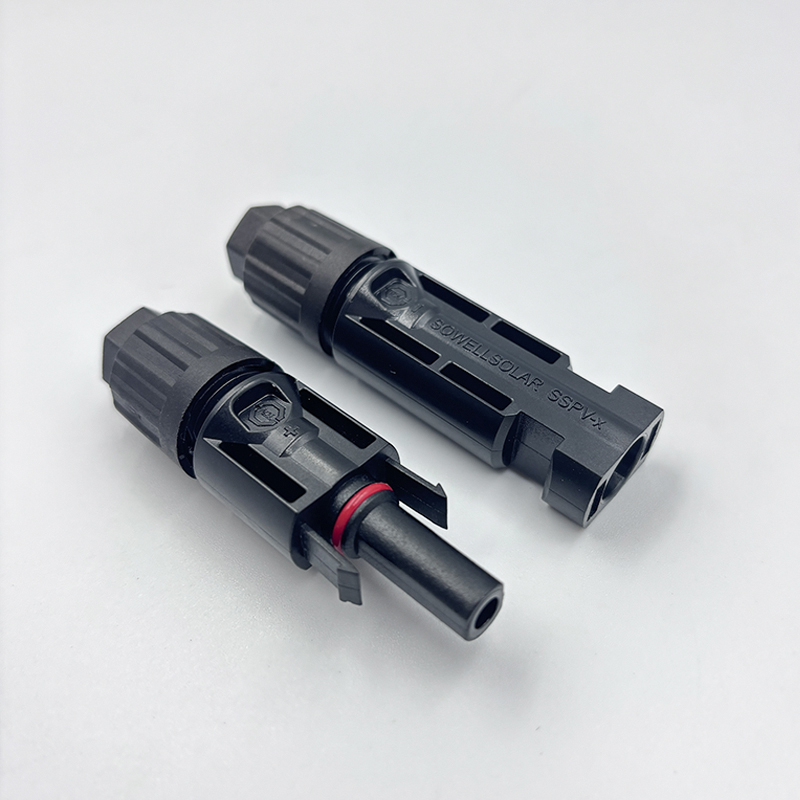

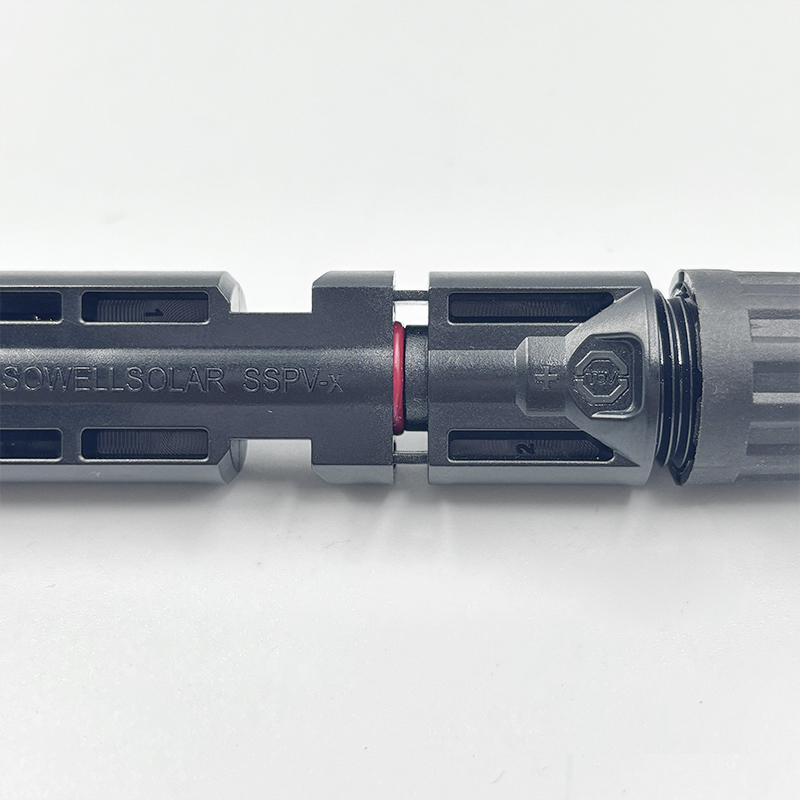

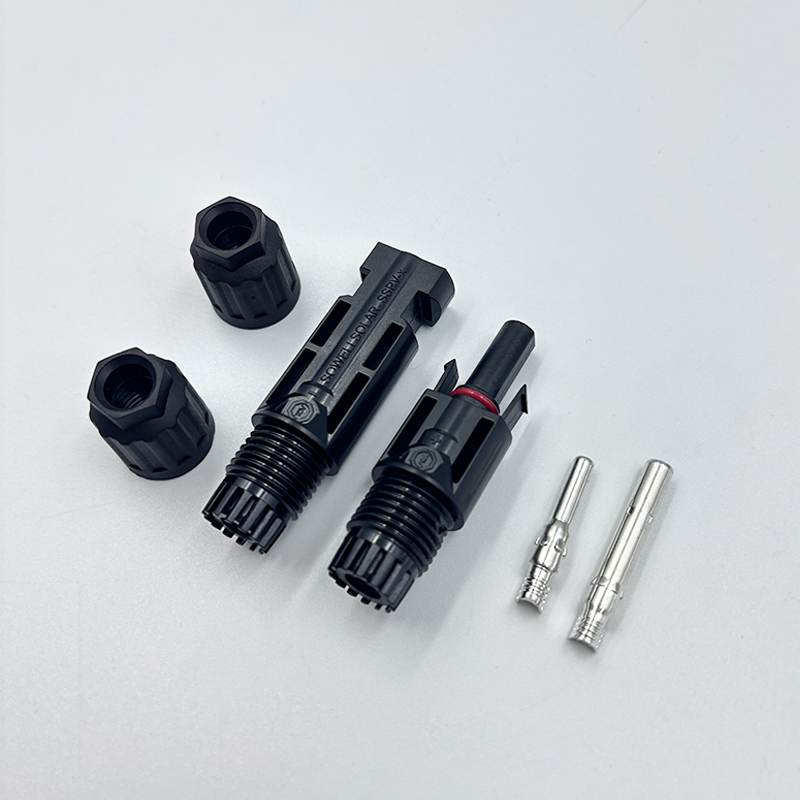

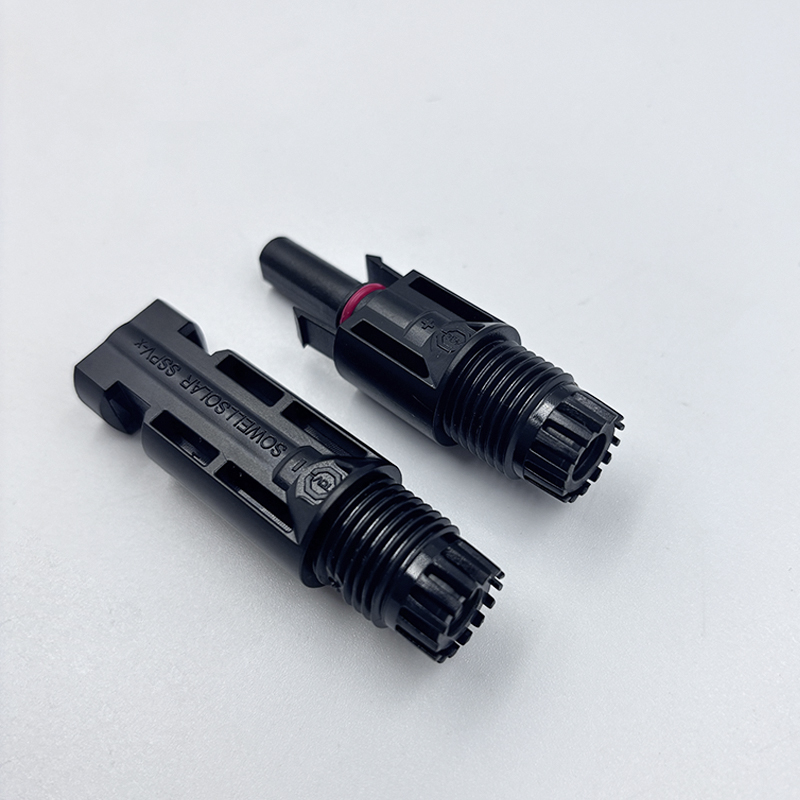

This connector is specially designed for solar module, adopt inner drum type crown spring contact, self- locking instruction, make electrical contact and connect more fastness, system voltage 1000V, rated current 30A. Cable length 1M or any other length customer defined.

This connector is convenience and reliable, with MC4 perfect compatibility.

Characteristic：

1. The connector adopt inner drum type crown spring contact, make electrical connect fastness.

2. Adopt firm ultrasonic welding to match convex terminal design.

3. Self-locking, connect convenience and reliable.

4. Strong ageing resistance for outer housing, UV resistant ability, suit for using in outdoor severe environment.

5. Match with MC4 connector.

6. Electrical property well, contact resistance less than 0.25mΩ, less heating and low power consume.
